Medistrom Pilot 24-Lite Battery Pack for CPAP Devices

Name: Medistrom Pilot 24-Lite Battery Pack for CPAP Devices
SKU: Pilot Lite - 24V SALE
Price: 394.31 EUR
Availability: OutOfStock

€485.00 Inc VAT

[Please contact Medicare on 01 201 4900 if you would like to purchase this product]

Introducing the New Pilot-24 Lite – revolutionary small Backup Power Supply/ Portable Travel Battery for the Resvent iBreeze series and other 24V CPAP Devices.

Pilot-24 Lite is manufactured with genuine LG industrial grade rechargeable lithium ion cells. The Pilot-24 Lite can be used as a backup power source to prevent interruption to PAP therapy in the case of a power outage. Pilot-24 Lite can serve as a portable PAP battery during travel by air, land, or sea when the mains power source is not available.

Pilot-24 Lite has a USB port (output: 5V 2.5A) which can be used to charge cell phones, tablets and other commonly used handheld devices rated for receiving the above USB power output.

Out of stock

SKU: Pilot Lite - 24V SALE Categories: Respiratory, Respiratory Accessories

Features

Which CPAP devices are compatible?

● Resvent iBreeze Series

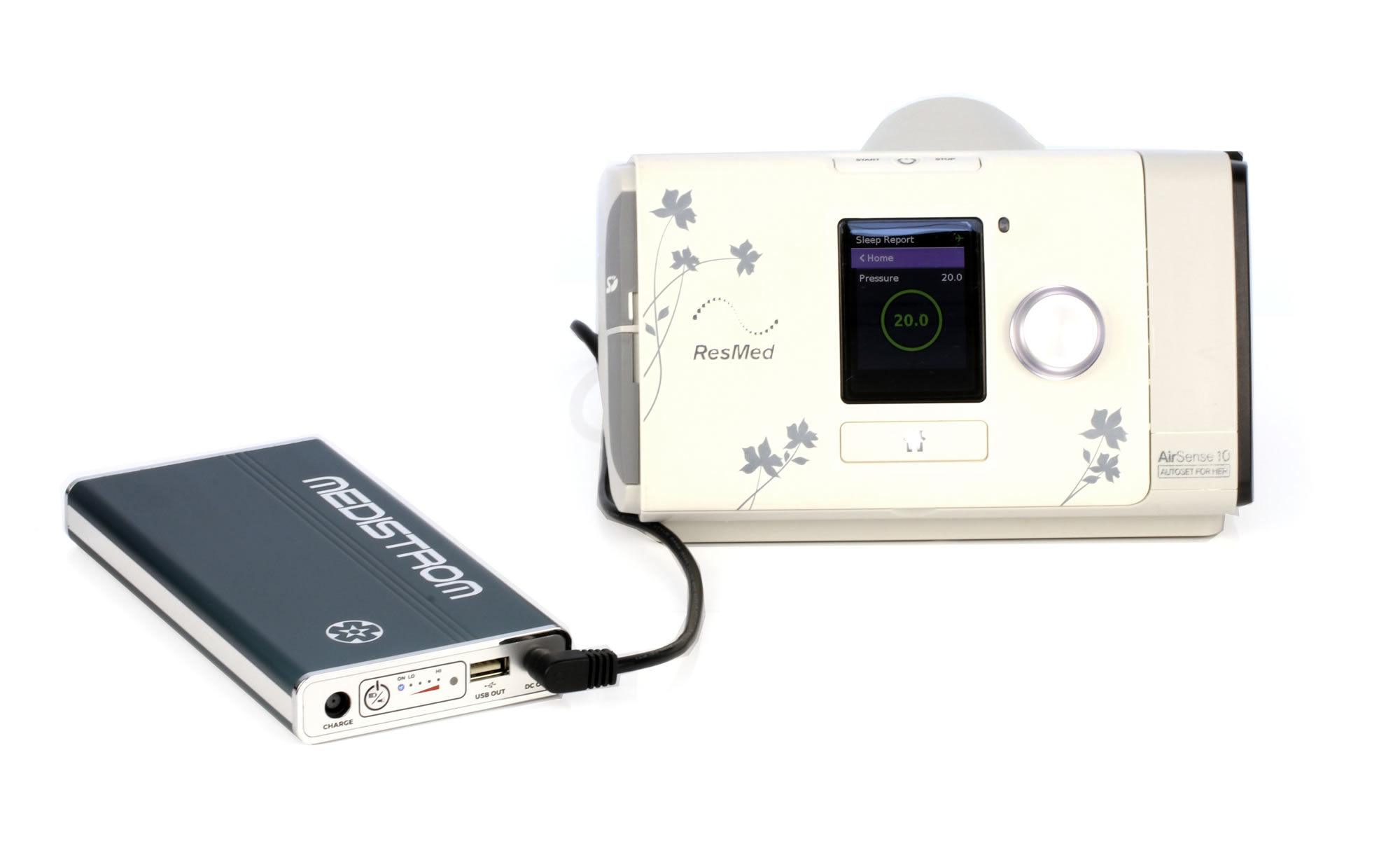

● ResMed AirSense 10
● ResMed AirMini (In order to run Pilot 24 Lite in backup configuration with AirMini, please use Medistrom AC Power Adapter (SKU #P24ACCACA), or ResMed original AC power adapter for AirSense 10)
● ResMed S9*
● 3B Medical Luna*
● Apex Medical iCH*

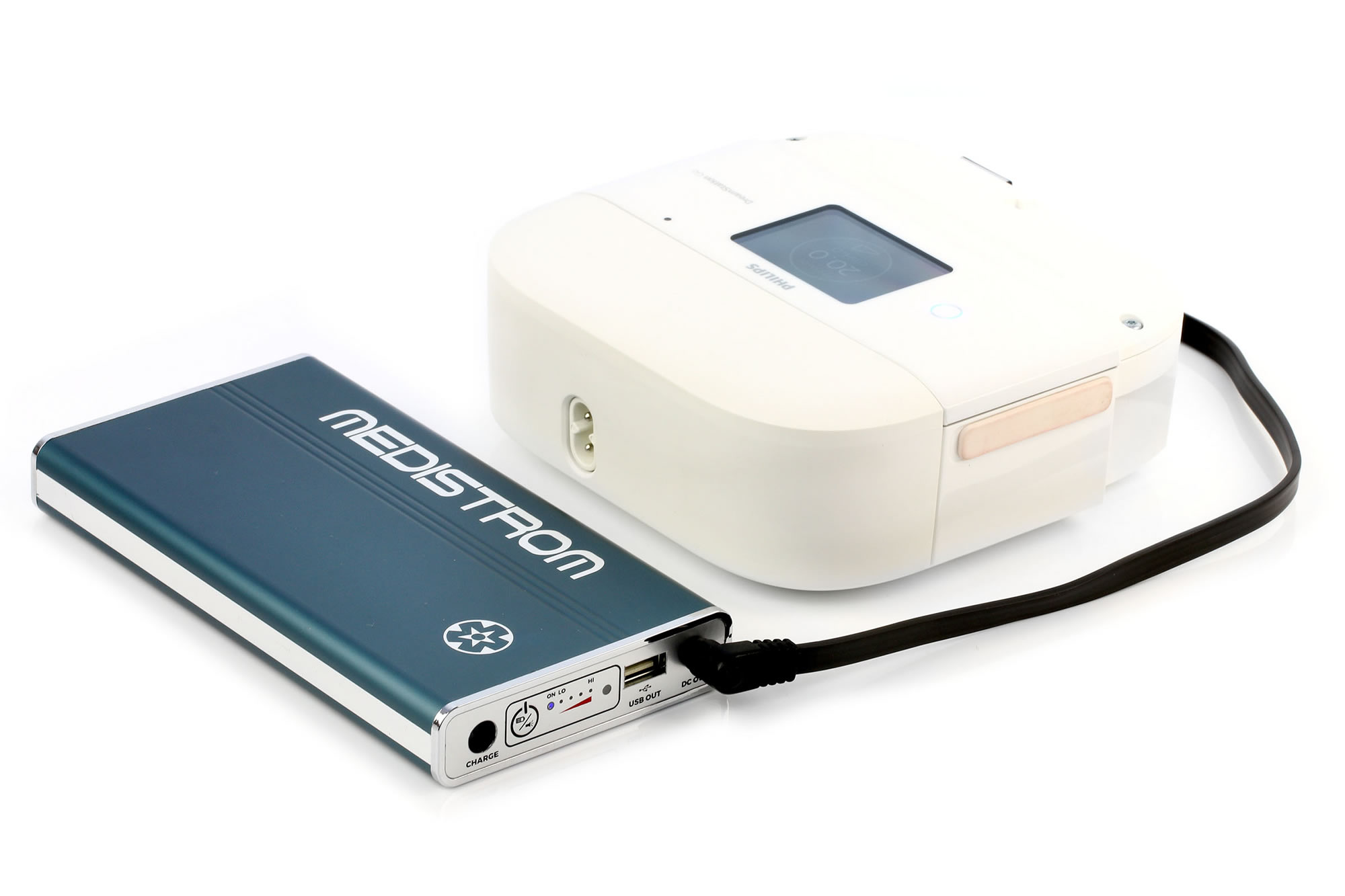

● Philips Respironics DreamStation Go Travel PAP* (*Cable Kits sold separately)

If you are in a possession of another CPAP device that is not mentioned in the description above, please contact Medicare Health & Living Ltd. for further information on the compatibility of our CPAP battery pack with your CPAP machine.

What's included?

● Apex ICH / Resvent iBreeze kit for Pilot-24 Lite
● Output Cable for ResMed AirSense 10
● Output Cable for ResMed AirMini
● Short Charging adapter for ResMed AirMini
● Battery Carry Sleeve
● ENG User Manual

Product Specification

● Capacity: 95Wh
● Cell Type: LG Industrial grade genuine rechargeable lithium ion cells
● Rated Input: 24V, 60W(NORMAL) 90W(MAX)
● Rated Output: DC 24V, 3.5A
● USB Out: 5V, 2.5A
● Life Span: Over 500 full charge/discharge cycles
● Case: Aluminium
● Dimensions: 17cm x 9cm x 2cm, Weight 1.3lbs
● Power Gauge: 4 stage Charge Level Indicator Lights
● Recharge time: 2-3 hours via Respironics DreamStation AC Adapter (charging via other compatible adapters may be longer)

Documents

24 V Battery

Control Panel

1. Charge Port

Plug the compatible AC adapter into this port (use the short charging adapter cable if required). Ensure that the AC adapter is plugged into the mains power outlet. Once the battery is charging the 4 green Charge Level Indicator Lights will turn on.

2. Multi-Function Button

Pressing the button once will show the battery’s charge level. Holding the button for 3 seconds will turn the LED Flashlight On and Off.

3. Blue “ON” Indicator Light

The light will shine solid blue once the battery is connected and is sending power to a compatible PAP device.

4. Green Charge Level Indicator Lights

When the battery is being charged, the lights will blink, and then shine solid green showing the level of charge going from Lo to Hi.

5. LED Flashlight

Can be turned ON and OFF by holding the Multi-Function Button for 3 seconds. Note: If the Pilot Lite battery is not connected to a device, the flashlight will turn OFF automatically after 10 minutes, otherwise, the flashlight will remain ON.

6. USB Port (5V 2.5A Out)

Can be used to charge handheld devices (please check that the output Voltage and Amperage is compatible with the device that needs charging via the USB before connecting). Once connected press the Multi-Function Button to turn on the battery.

7. DC Out Port

This port is used to connect a compatible PAP device to the battery by using the matching DC output cable.
